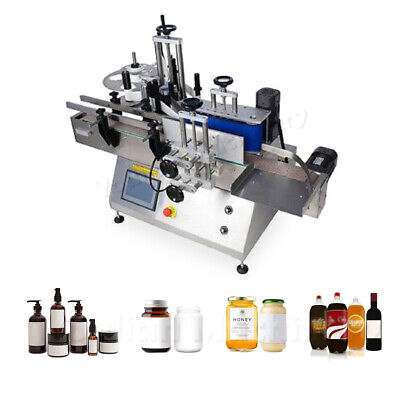

Product Photo

Product Parameters

Model

MT-130

Power Supply

220V         50/60HZ

Conveyor width

120mm

Laber speed (maximum)

20-40pcs/min

Labeling precision

±1mm

Machine size (L *W* H)

1300*900*970 mm

Machine Weight

180KG

Product Feature


Control panel

> Touch screen operation Panel

> The beside two knobs can adjust the labeling speed and conveyor speed as your need.

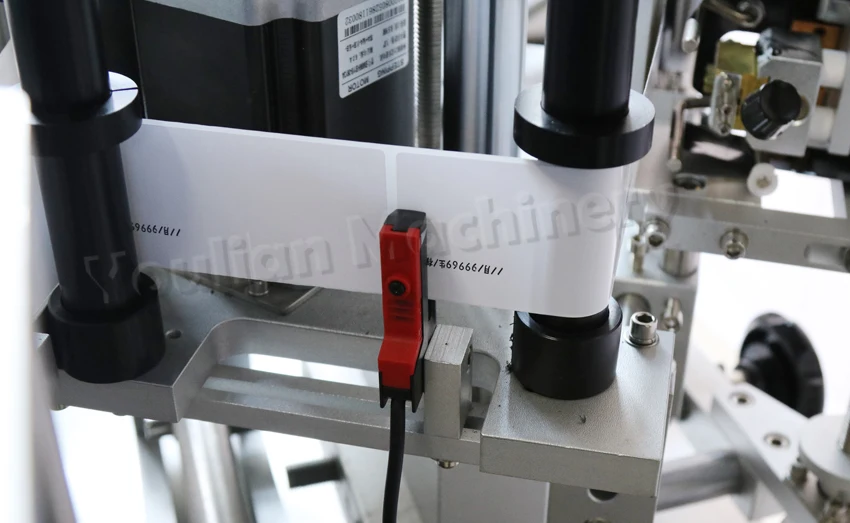

Senior electric eye control system


> Automatic imported fiber amplifier, automatic induction product labeling, simple and intelligent operation, ensuring the accuracy of labeling.

Coneveyor belt


> The conveyor belt is made of plastic, and the width of the conveyor belt can be adjusted according to the diameter of the bottle, and the width can be also customized if it exceeds the standard range.

Labeling belt


> Labeling quality, using standard of spring cover belt with long service life, labeling smooth, flat labeling, no wrinkles, no bubbles, improve packaging quality.

Color ribbon coding machine


> This machine can be euipped with a date coder, wihch can help you shorten the production process.It makes labeling and printing at one machine (optional).

Accessories


> All the accessories will be packaged with the machine, which are used to install the machine and some parts are aged for replacement after long-term use.
